Indoor Acoustic Panels
Available now
Linear Oak
Vertical slat acoustic panel in European oak
Our signature acoustic panel. Solid European oak slats mounted on a charcoal felt substrate for warm, balanced absorption across speech frequencies.
Available colours
- Warranty
- 12 years
- Origin
- Slats milled in Croatia. Assembled in Sydney
Overview
The reasoning behind the spec.
Linear Oak is the reference panel in the Teak and Rope acoustic range. Each panel is built from solid European oak slats, finger jointed for length, and bonded to a 9mm PET acoustic felt substrate. The result is a calibrated absorber that softens speech, removes flutter echo and warms a room without darkening it. Specified across more than 400 Australian projects since 2019, Linear Oak balances technical performance with the quiet authority of a single material done well.
What sets it apart
Engineered details.
Calibrated absorption
NRC 0.85 across the 250 to 2000 Hz speech band, independently tested to ISO 354.
Solid timber slats
12 x 21mm rift sawn European oak. Not veneer, not MDF wrap.
Concealed magnetic fix
Optional magnetic clip system for removable, service friendly installation.
Project scaled
Stocked in two lengths and four finishes. Custom slat profiles available from 50sqm.
Performance
Tested. Rated. Documented.
Every metric below is independently verified. Full test reports and BAL compliance pathways are available with the technical data sheet.
Technical Specification
- Substrate
- 9mm PET acoustic felt, charcoal
- Slat dimensions
- 12 x 21mm solid oak
- Panel size
- 2400 x 600mm
- Panel weight
- 11.4 kg
- NRC rating
- 0.85 (ISO 354)
- Fire rating
- Group 3 (AS 5637.1)
- Finish
- UV cured natural oil
- VOC emissions
- E1, low VOC certified
Warranty
12 year warranty for interior use.
Lead time
Stocked: 5 business days. Custom: 6 to 8 weeks.
Origin
Slats milled in Croatia. Assembled in Sydney, Australia.
Certifications
- FSC 100%
- GreenTag Level A
- AS 5637.1 Group 3
- E1 low formaldehyde

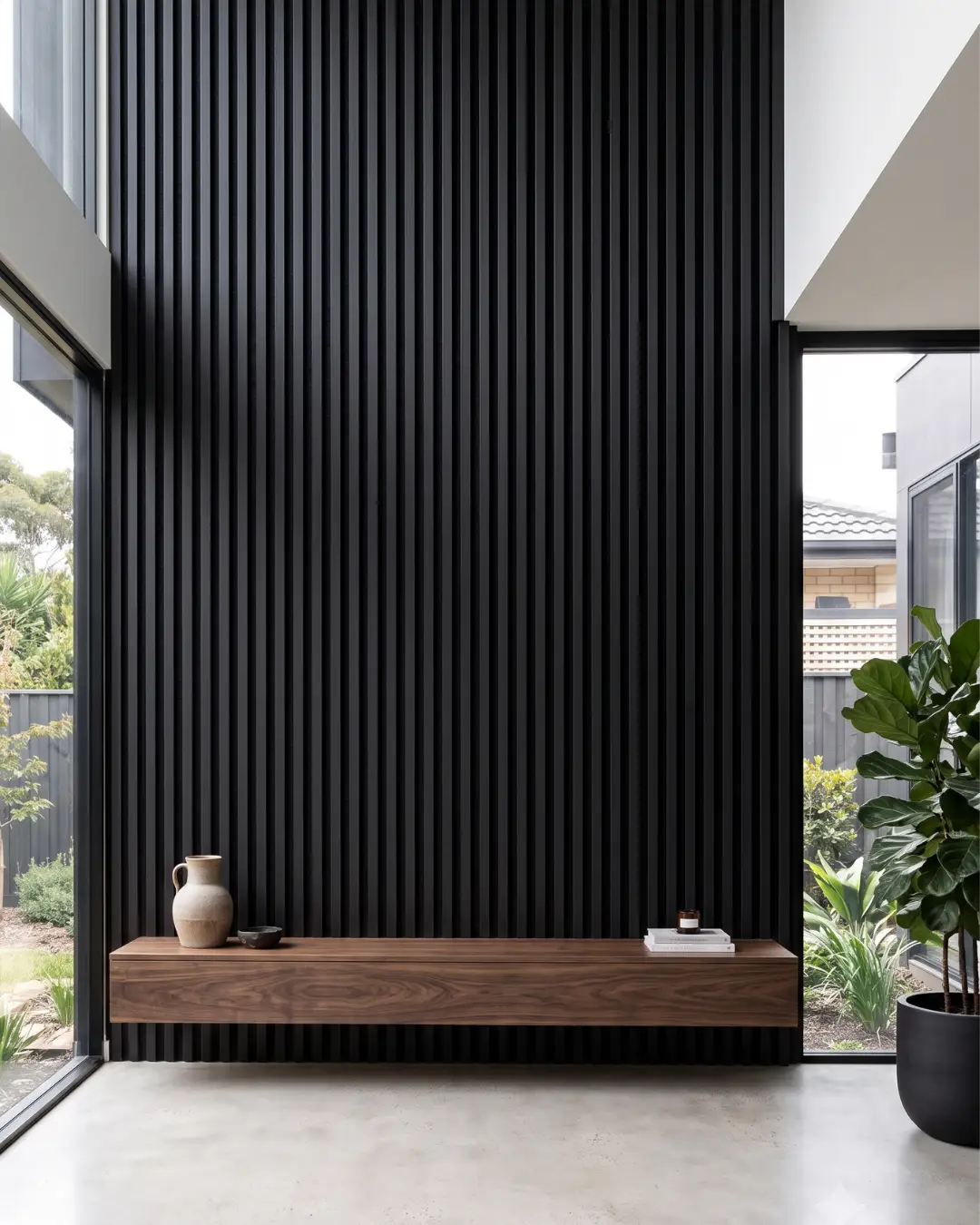

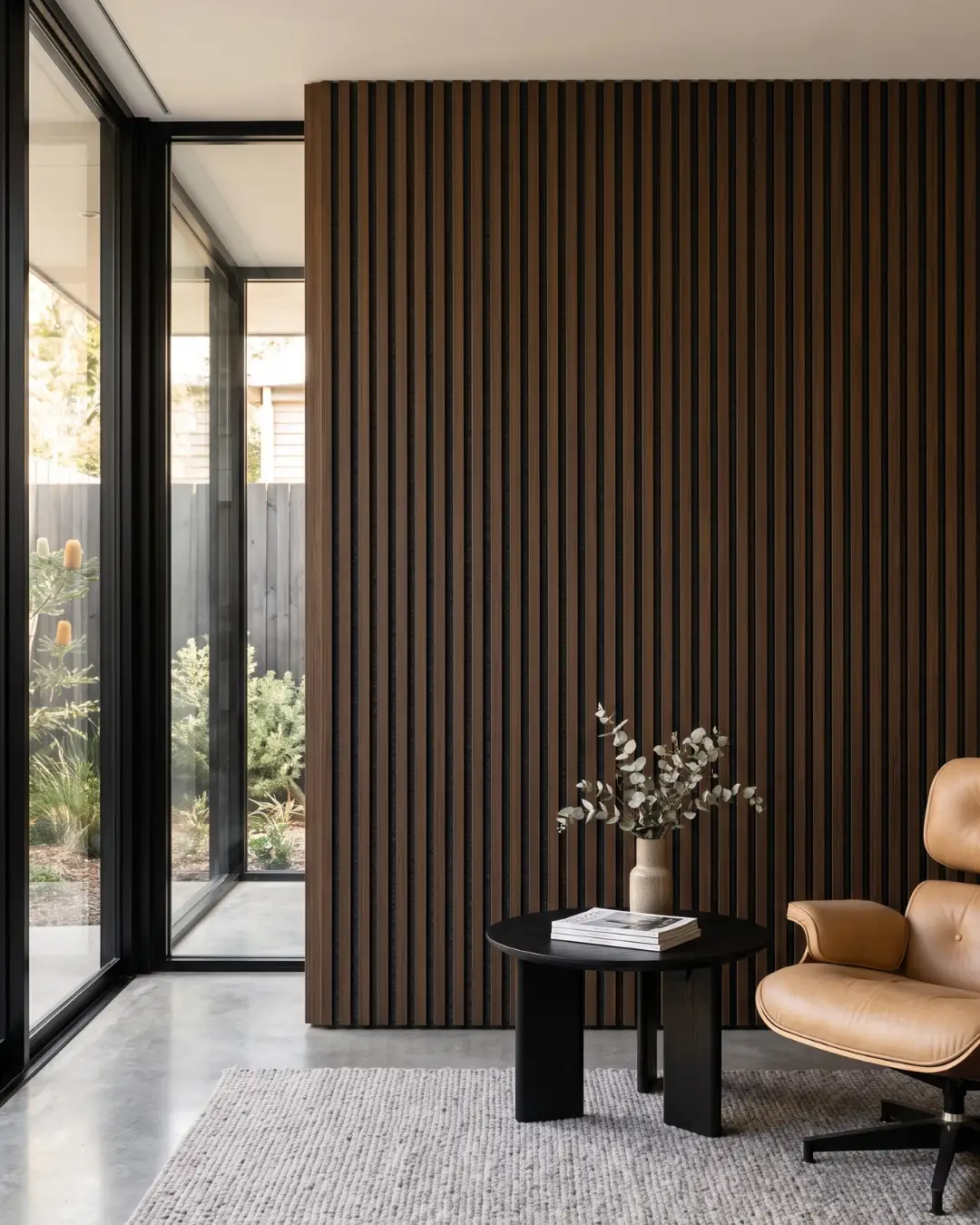

In situ
As built, not rendered.
Selected frames from completed Australian projects featuring this profile.
Finishes
4 factory finishes.
Custom colour matching available on project quantities of 80sqm and above. All finishes are low VOC and certified for indoor air quality.
Natural Oil
UV cured penetrating oil. Retains the raw character of the timber.
Smoked
Fumed with ammonia for a deeper, richer chocolate undertone.
Charcoal
Hand applied black stain with grain texture preserved.
Limewash
Soft white wash for a Scandinavian, light filled interior.
Installation
Detailed for the people who build.
Every order ships with our installation guide, fixing schedule and toolbox talk pack. Site visits available on request across the eastern seaboard.
Book a Site Walk- 01
Set out
Establish vertical reference lines and confirm services behind the substrate.
- 02
Mount battens
42 x 19mm treated pine battens at 600mm centres, screw fixed to studs.
- 03
Fix panels
Direct fix through the felt with colour matched screws or magnetic clips.
- 04
Trim
Scribe and rebate at junctions. Use matching solid oak shadowline trims at perimeter.
Typical applications
Where it performs.
Specified across these typologies by Australian architects and developers.
FAQs
The questions we hear most.
Specify Linear Oak on your next project.
Order an A4 sample pack, request a project quote, or arrange a meeting with our specification team.
